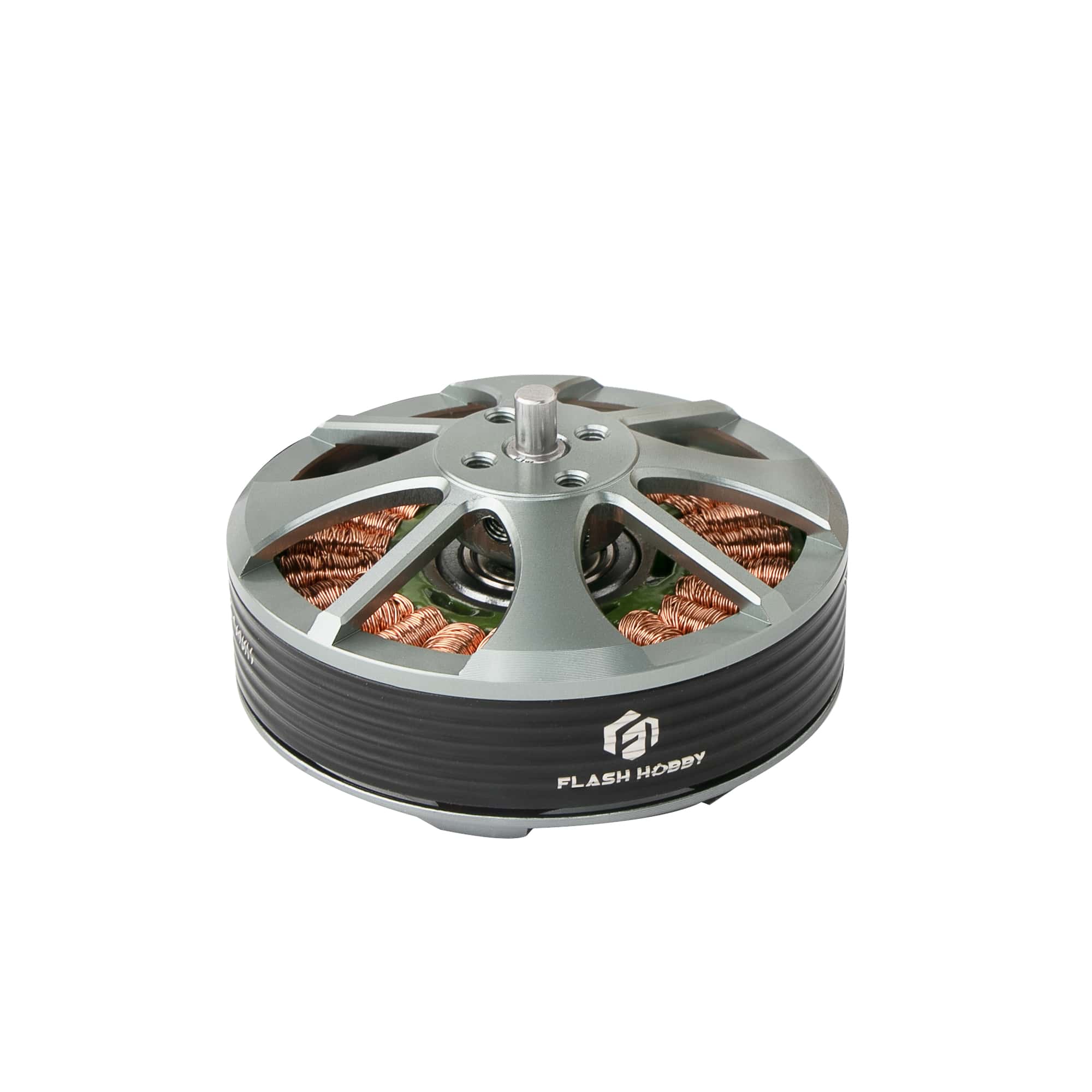

5208 MultiRotor Motor

5208 RC Brushless Motor for FPV Drone, X Class Drone, Agricultural Drone

Features:
48SH Level Magnet
Subtilitas Libratum Rotor Test
12N14P High Torque Motor Design
CNC 6061-T6 Aluminium Bell .
Princeps RPM Imported (NSK/NMB) supportantes
Maximum Temperature Resistant Copper Wire Winding

—Weight: 197.0g (including rudentes)
●Motor Size: 60 x 28mm
●Shaft Diameter: 4.0mm
●Motor Mount: 19*25mm(M3*4)
●Configuration: 24N22P
●Motor cable: 18#AWG 220mm
●KV Precium: 330KV, 400KV vel KV . consuetum
●Recommend: XV ~ XVIII" inch huius application

MT5208-340KV Motor Specification
Max pull：3750g
Volts：24.0V(6S)
Suggessit ESC: 40A~50A
Maximum Power: 734.4W

Suggessit Prop: CF1555TM, CF1755TM, CF1855TM Inch prop

MT5208-340KV
Prop（digitis）	Throttle（%）	Voltages（V）	Current onus（A）	Virtus (W)	Trahere (g)	Effectus (g/W)	Temperatus (in plena suffocare onus 1min)
CF1555TM	L%	24.0	3.7	88.8	910	10.25	42℃
	54%	24.0	5	120.0	1120	9.33
	57%	24.0	6	144.0	1290	8.96
	62%	24.0	8	192.0	1540	8.02
	66%	24.0	10	240.0	1820	7.58
	70%	24.0	12	288.0	2070	7.19
	74%	24.0	14	336.0	2280	6.79
	78%	24.0	16	384.0	2470	6.43
	81%	24.0	18	432.0	2630	6.09
	100%	24.0	20	480.0	2880	6.00
CF1755TM	L%	24.0	5.3	127.2	1220	9.59	65℃
	52%	24.0	6	144.0	1320	9.17
	56%	24.0	8	192.0	1620	8.44
	59%	24.0	10	240.0	1900	7.92
	62%	24.0	12	288.0	2140	7.43
	65%	24.0	14	336.0	2340	6.96
	68%	24.0	16	384.0	2610	6.80
	71%	24.0	18	432.0	2750	6.37
	75%	24.0	20	480.0	2930	6.10
	78%	24.0	22	528.0	3120	5.91
	80%	24.0	24	576.0	3290	5.71
	82%	24.0	26	624.0	3440	5.51
	100%	24.0	27.8	667.2	3560	5.34
CF1855TM	L%	24.0	6.6	158.4	1480	9.34	78℃
	52%	24.0	8	192.0	1710	8.91
	55%	24.0	10	240.0	1970	8.21
	59%	24.0	12	288.0	2220	7.71
	61%	24.0	14	336.0	2480	7.38
	64%	24.0	16	384.0	2720	7.08
	66%	24.0	18	432.0	2880	6.67
	69%	24.0	20	480.0	3010	6.27
	71%	24.0	22	528.0	3220	6.10
	74%	24.0	24	576.0	3380	5.87
	77%	24.0	26	624.0	3570	5.72
	80%	24.0	28	672.0	3650	5.43
	100%	24.0	30.6	734.4	3750	5.11
