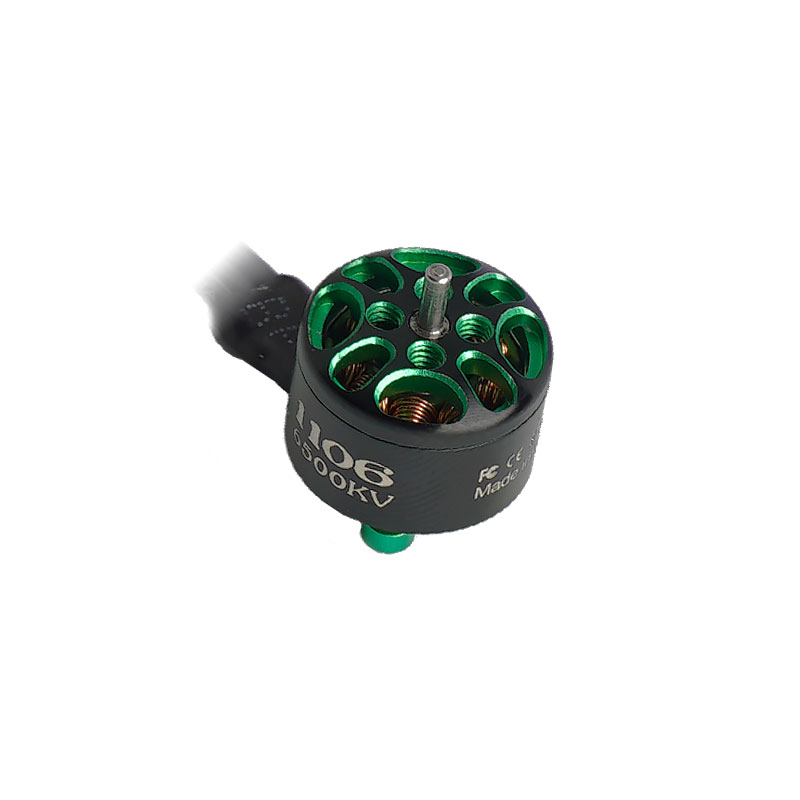

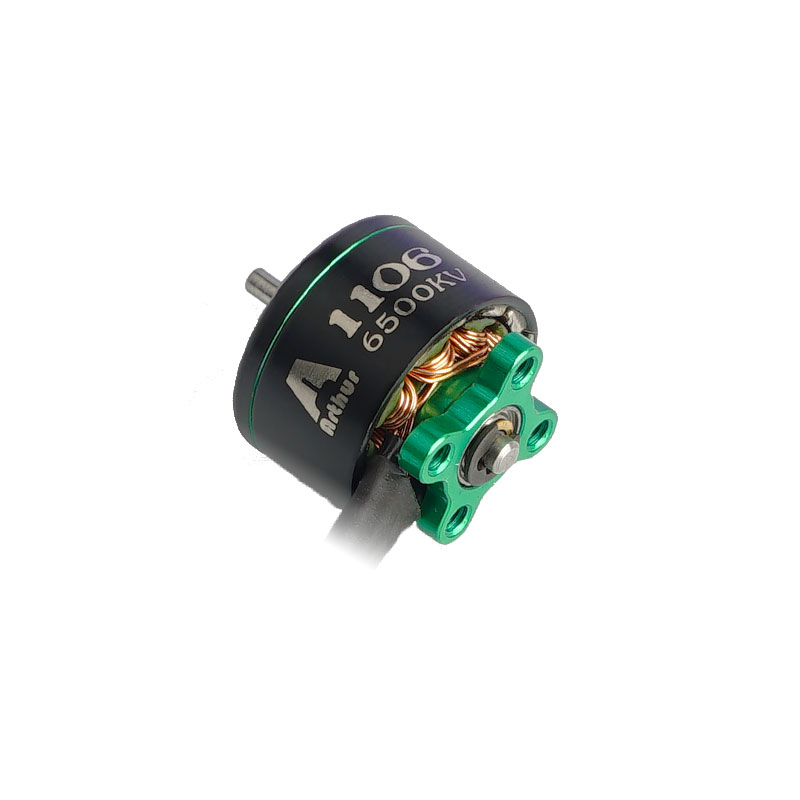

A1106 Brushless DC Motor

A1106 Brushless DC Motor

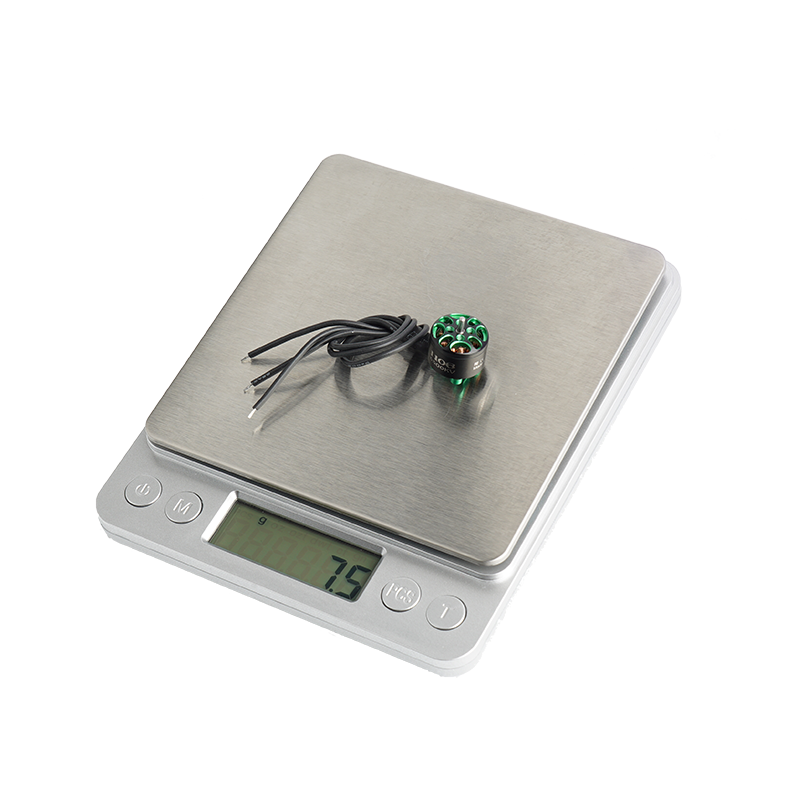

●Weight: 6.2g (including ancoras)
●Motor Size: 14.4×12.8mm
Stator Diameter: 12mm
Stator Altitudo: 4mm
Shaft Diameter: 2.0mm
●Motor Mount: 9*9mm(M2*4)
●Configuratio: 9N12P
●Motor cable: 26#AWG 115mm
NSK Ferens
7075-T6 Aluminium bell
Multicolor color design
●0.15mm charta Siliconis ferri ex Kawasaki, Japan
KV Value: 4500KV, 6500KV vel KV custo-
Rated Power:15W

Mitte Inquisitionem

Flash Hobby professio est Sinarum A1106 Brushless DC Motor fabrica et elit, si quaeris optimum A1106 Brushless DC Motor parvo pretio, nunc consule nos!

Buy Hot A1106 Brushless dc Motor in Sinis factis. Flash Hobby est A1106 Brushless dc Motor fabrica et elit in Sinis.

A1106-4500KV Motor Specification

Max pull：213g

Volts：12V(3S)

Suggessit ESC: 10A~20A

Rated Power:15W

Suggessit Prop: III inch huius

A1106-6500KV Motor Specification

Max pull：261g

Volts：12V(3S)

Suggessit ESC: 10A~20A

Suggessit Prop

Operatio Temperature Range：-0℃~+80℃

Imperium Method：usus ESC Et Adjust PWM signum For Control，PWM Coaptatione Range 900- 2100US

Motor Type: Praecursor Brushless Motor, Tribus Phase Motor

MOTOR Tractus:

Datas Test:

ltem NO.	Volts(V)	Prop	Iugulus (%)	Current(A)	Virtus (W)	Thrust (g)	Efficientia (g/W)	Operans temperatus (℃)
A1106 4500kv	7.99	GF3028 3R	L%	0.30	2.40	37.00	15.44	55℃
	7.99		60%	0.60	4.79	65.00	13.56
	7.94		70%	1.08	8.58	90.00	10.50
	7.88		80%	2.29	18.05	112.00	6.21
	7.98		90%	3.31	26.41	130.00	4.92
	7.88		100%	3.37	26.56	130.00	4.90
A1106 4500kv	11.99	GF3028 3R	L%	0.34	4.08	101.00	24.78	60℃
	12.01		60%	1.75	21.02	136.00	6.47
	11.96		70%	3.24	38.75	170.00	4.39
	11.90		80%	4.99	59.38	198.00	3.33
	11.90		90%	6.15	73.19	218.00	2.98
	11.93		100%	5.95	70.98	213.00	3.00
A1106 6500KV	8.00	GF2040 3R	L%	1.82	14.56	32.00	2.20	39.4℃
			60%	2.70	21.60	47.00	2.18
			70%	3.64	29.12	63.00	2.16
			80%	4.99	39.92	80.00	2.00
			90%	5.75	46.00	95.00	2.07
			100%	5.95	47.60	96.00	2.02
	8.00	GF2540 3R	L%	2.56	20.48	65.00	3.17	44.3℃
			60%	3.78	30.24	87.00	2.88
			70%	5.13	41.04	111.00	2.70
			80%	6.76	54.08	141.00	2.61
			90%	8.35	66.80	162.00	2.43
			100%	8.51	68.08	163.00	2.39
	8.00	GF3028 3R	L%	3.10	24.80	85.00	3.43	50.5℃
			60%	4.52	36.16	113.00	3.13
			70%	6.08	48.64	145.00	2.98
			80%	8.31	66.48	176.00	2.65
			90%	10.24	81.92	201.00	2.45
			100%	10.41	83.28	203.00	2.44
	12.00	GF2040 3R	L%	3.10	37.20	64.00	1.72	48.8℃
			60%	4.72	56.64	93.00	1.64
			70%	5.81	69.72	121.00	1.74
			80%	8.24	98.88	152.00	1.54
			90%	10.02	120.24	176.00	1.46
			100%	10.27	123.24	176.00	1.43
	12.00	GF2540 3R	L%	4.32	51.84	113.00	2.18	71.4℃
			60%	5.95	71.40	151.00	2.11
			70%	8.24	98.88	189.00	1.91
			80%	11.22	134.64	232.00	1.72
			90%	13.42	161.04	254.00	1.58
			100%	13.92	163.00	261.00	1.60

Product Detail:

Coniuncta instructiones

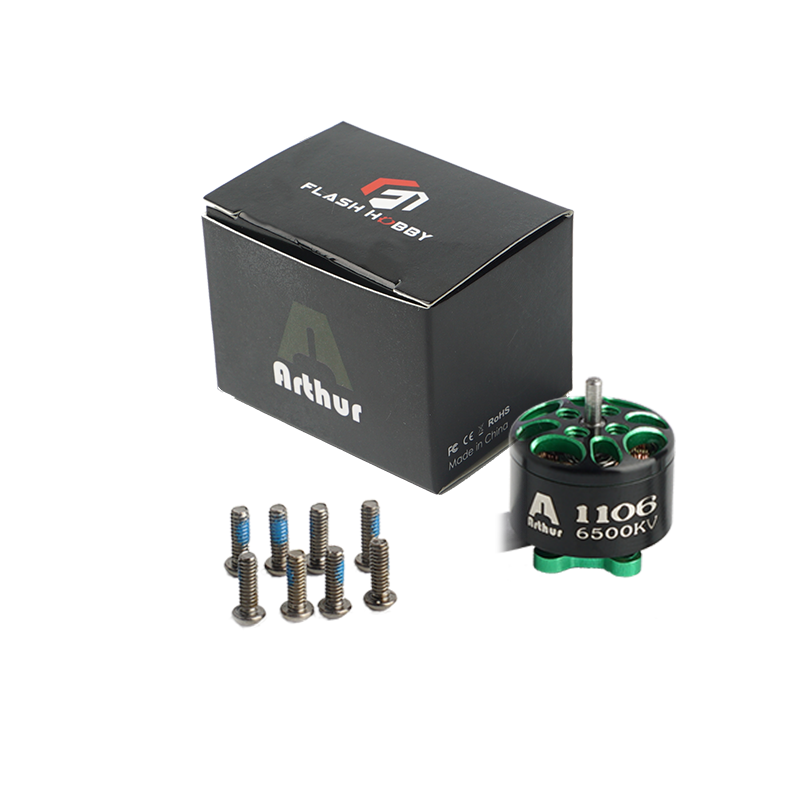

Referta:

Flash Aliquam motoriam*1pcs, M2X5mm*4, M2X7mm*8

FAQ

1、Quid est MOQ of?the regular item?

A: Non est MOQ limitata pro stirpe item. Sed si opus est mutare colorem vel consilium, MOQ sicut per diversam petitionem statuemus.

2、Si ordo quantitas magna est, si pretium a mangone applicare potest?

A: Ita, per diversam petitionem nostram optimam offerimus.

3、Si mutare aliquid opus est cum confirmatus ordo, pis quomodo facere possumus?

A: Si petis, pls contactum nobiscum intra 2 dies cum ordo confirmatus est, aliter, cassari non potest, nec consilium motoris mutare potest.

4、Quousque partus tempus?

A: Id est de VII diebus cum ordo item pro regulari confirmatur.

5、Quid est plumbum ordinis OEM/OMD?

A: Communiter dies est 15-30.

6、Quid est MOQ of?OEM/OMD ordine?

A: Single color Motor MOQ-200PCS

Multicolores Motor MOQ-1000PCS
