D2836EVO Fixarum Wing Motor

Flash Hobby est D2836EVO Fixarum Wing Motor fabrica et elit in Sinis.
●Weight: 88.6g (fila Complectens)
●Motor Size: 28 x36mm
●Shaft Size: 4.0*51.0mm
Stator Diameter: 22mm
Stator Height: 17mm
●Motor Mount: 16*19mm(M3*4)
Configurationis: 12N14P
KV Value: 750KV, 850KV,1100KV, 1450KV vel KV consuetum.

Model:D2836EVO

Mitte Inquisitionem

Flash Hobby princeps Sinarum D2836EVO Motor fabricae certae, elit et exportator. Inhaerentes studio perfectae qualitatis productorum, ut nostra D2836EVO Motor Wing certa a multis clientibus satisfacta fuerit. Extremum consilium, materias rudis qualitas, princeps effectus ac pretium competitive sunt quod omnis mos velit, et id etiam quod tibi offerre possumus. Scilicet, etiam essentialis est perfecta post venditionesque servitium. Si interest in nostris D2836EVO Fixarum Wing Motorum officiis, nos nunc consulere potes, in tempore tibi respondebimus!

D2836Brushless DC Motor Application

D2836EVO（2217） Brushless dc Motor ，Helicopter, Cradle Machina Coffee Lac Tea Machina Electric EXERCITATIO Machina Mowing Machina Robotic Arm, Crawler

D2836Brushless DC Motor Features:
48H Level Magnet
Subtilitas Libratum Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminium Bell .
Princeps RPM Imported (NSK/NMB) supportantes

Maximum Temperature Resistant Copper Wire Winding

Brushless DC Motor Specification

Pondus: 88.6g (fila Complectens)
Motor Size: 28 x36mm
Shaft Size: 4.0*51.0mm
Stator Diameter: 22mm
Statoris Height: 17mm
Motor Mount: 16*19mm(M3*4)
Configurationis: 12N14P

KV valorem pro Electio

KV Value: 750KV, 850KV,1100KV, 1450KV vel custum KV

KV: 750KV
Max Watts: 194.9W
Max Current: 11.95A
No Load current: 0.74A
Resistentia: 124mΩ
Pugna: 3-4S Lipo
Suggessit Prop

KV: 850KV
Max Watts: 244.5W
Max Current: 15.11A
No Load current: 0.92A
Resistentia: 97.4mΩ
Pugna: 3-4S Lipo
Suggessit Prop: 10 inch huius

KV: 1100KV
Max Watts: 462.7W
Max Current: 30.3A
No Load current: 1.37A
Resistentia: 57.9mΩ
Pugna: 3-4S Lipo
Suggessit Prop

KV: 1450KV
Max Watts: 739.6W
Max Current: 48.69A
No Load current: 2.24A
Resistentia: 33.5mΩ
Pugna: 3-4S Lipo
Suggessit Prop

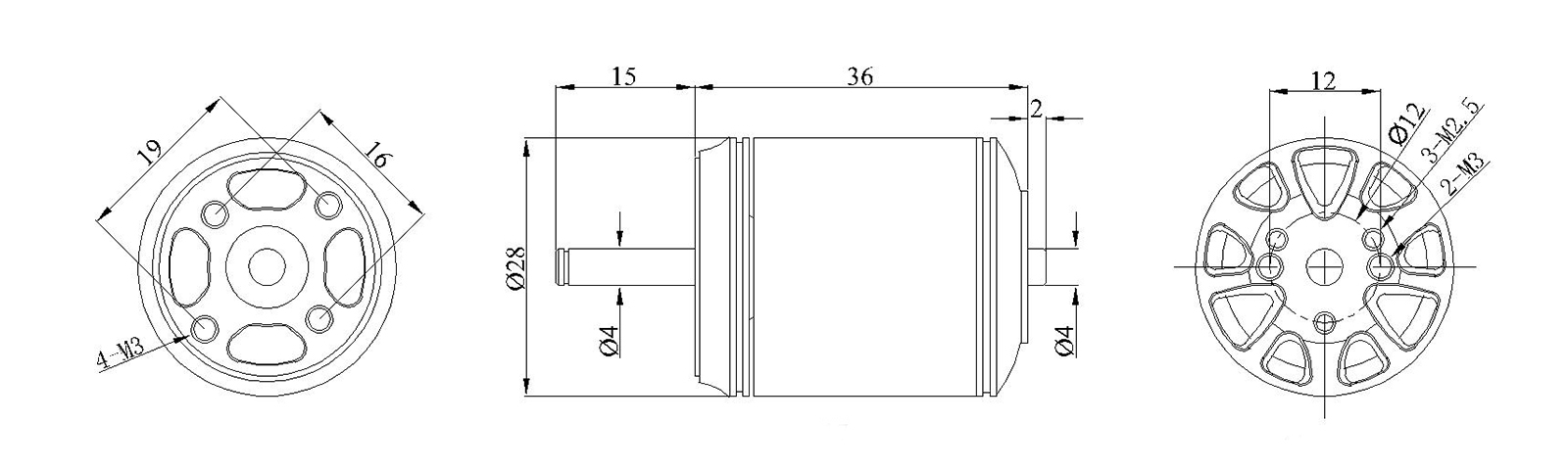

D2836EVO Motor Drawing

CONIUNCTIO:

D2836 EVO Brushless DC Motor Specification

D2836 EVO Motor Drawing

D2836 EVO Motor TEST DATA:

MOTOR TECHNICAL DATA:
ltem NO.	Volts(V)	Prop	Throttle(%)	CURRENT (A)	Power(W)	Thrust (g)	PRM	Efficiency (g/W)	Operating temperature(℃)
D2836-750KV(EVO)	12.46	APC 9x6	40%	1.95	24.3	220	5441	9.1	30.8℃
	12.45		50%	2.44	30.4	260	5932	8.6
	12.44		60%	2.83	35.2	288	6341	8.2
	12.43		70%	3.21	39.9	318	6639	8.0
	12.41		80%	3.61	44.8	346	6929	7.7
	12.39		90%	4.77	59.1	424	7666	7.2
	12.38		100%	4.88	60.4	425	7766	7.0
	16.59	APC 9x6	40%	3.44	57.1	414	5962	7.2	39.5℃
	16.56		50%	4.52	74.9	498	6612	6.7
	16.53		60%	5.55	91.7	569	7107	6.2
	16.50		70%	6.65	109.7	650	7573	5.9
	16.44		80%	8.54	140.4	764	8323	5.4
	16.33		90%	11.60	189.4	953	9182	5.0
	16.31		100%	11.95	194.9	966	9260	5.0
D2836-850KV(EVO)	12.35	APC 12x6	40%	2.80	34.6	265	3552	7.7	38.8℃
	12.31		50%	4.46	54.9	350	4030	6.4
	12.29		60%	5.61	68.9	454	4604	6.6
	12.26		70%	7.12	87.3	583	5217	6.7
	12.21		80%	9.44	115.3	727	5727	6.3
	12.14		90%	12.95	157.2	825	6296	5.2
	12.13		100%	13.19	160.0	827	6316	5.2
	16.59	10x5	40%	3.46	57.4	387	5102	6.7	39.3℃
	16.56		50%	4.98	82.5	494	5745	6.0
	16.52		60%	6.47	106.9	611	6429	5.7
	16.44		70%	8.51	139.9	736	7077	5.3
	16.34		80%	11.12	181.7	875	7760	4.8
	16.19		90%	14.66	237.3	1026	8409	4.3
	16.18		100%	15.11	244.5	1028	8466	4.2
	16.56	APC 11x7	40%	4.06	67.2	383	4217	5.7	39℃
	16.51		50%	6.02	99.4	497	4794	5.0
	16.45		60%	8.16	134.2	630	5444	4.7
	16.31		70%	11.64	189.8	738	5944	3.9
	16.19		80%	14.58	236.1	859	6394	3.6
	15.95		90%	19.66	313.6	1016	6826	3.2
	15.91		100%	19.79	314.9	1011	6827	3.2
D2836-1100KV(EVO)	12.38	APC 9x6	40%	5.76	71.3	438	6409	6.1	40.3℃
	12.32		50%	7.64	94.1	561	7095	6.0
	12.25		60%	9.51	116.5	661	7642	5.7
	12.19		70%	11.46	139.7	735	8163	5.3
	12.03		80%	14.81	178.2	867	8907	4.9
	11.71		90%	19.42	227.4	998	9666	4.4
	11.66		100%	19.95	232.6	1008	9725	4.3
	16.26	APC8x6	40%	6.71	109.1	509	8519	4.7	41.2℃
	16.19		50%	8.93	144.6	615	9367	4.3
	16.12		60%	11.02	177.6	691	10035	3.9
	16.04		70%	13.13	210.6	783	10635	3.7
	15.78		80%	16.62	262.3	920	11320	3.5
	15.47		90%	21.54	333.2	1049	12247	3.1
	15.32		100%	24.46	374.7	1138	12580	3.0
	16.26	APC 9x6	40%	7.72	125.5	667	7637	5.3	42.4℃
	16.17		50%	10.41	168.3	794	8453	4.7
	16.07		60%	13.03	209.4	912	9119	4.4
	15.84		70%	15.92	252.2	956	9719	3.8
	15.63		80%	20.92	327.0	1210	10617	3.7
	15.35		90%	27.22	417.8	1456	11466	3.5
	15.27		100%	30.30	462.7	1623	11804	3.5
D2836-1450KV(EVO)	12.25	APC9x6	40%	9.81	120.2	618	7540	5.1	43.5℃
	12.04		50%	13.06	157.2	743	8280	4.7
	11.91		60%	16.21	193.1	879	8883	4.6
	11.82		70%	19.69	232.7	995	9475	4.3
	11.63		80%	24.92	289.8	1178	10239	4.1
	11.60		90%	32.92	381.9	1429	11194	3.7
	11.58		100%	37.35	432.5	1535	11602	3.5
	15.97	APC8x4	40%	12.13	193.7	704	10860	3.6	44.2℃
	15.82		50%	16.29	257.7	847	11467	3.3
	15.67		60%	19.77	309.8	945	12423	3.1
	15.70		70%	25.24	396.3	1108	13360	2.8
	15.48		80%	32.96	510.2	1292	14290	2.5
	15.26		90%	43.38	662.0	1497	14668	2.3
	15.19		100%	48.69	739.6	1582	16579	2.1
Notes: The test condition oftemperature is motor surface temperature in 100% throttle while the motor run 15 s.environment temperature 26℃
