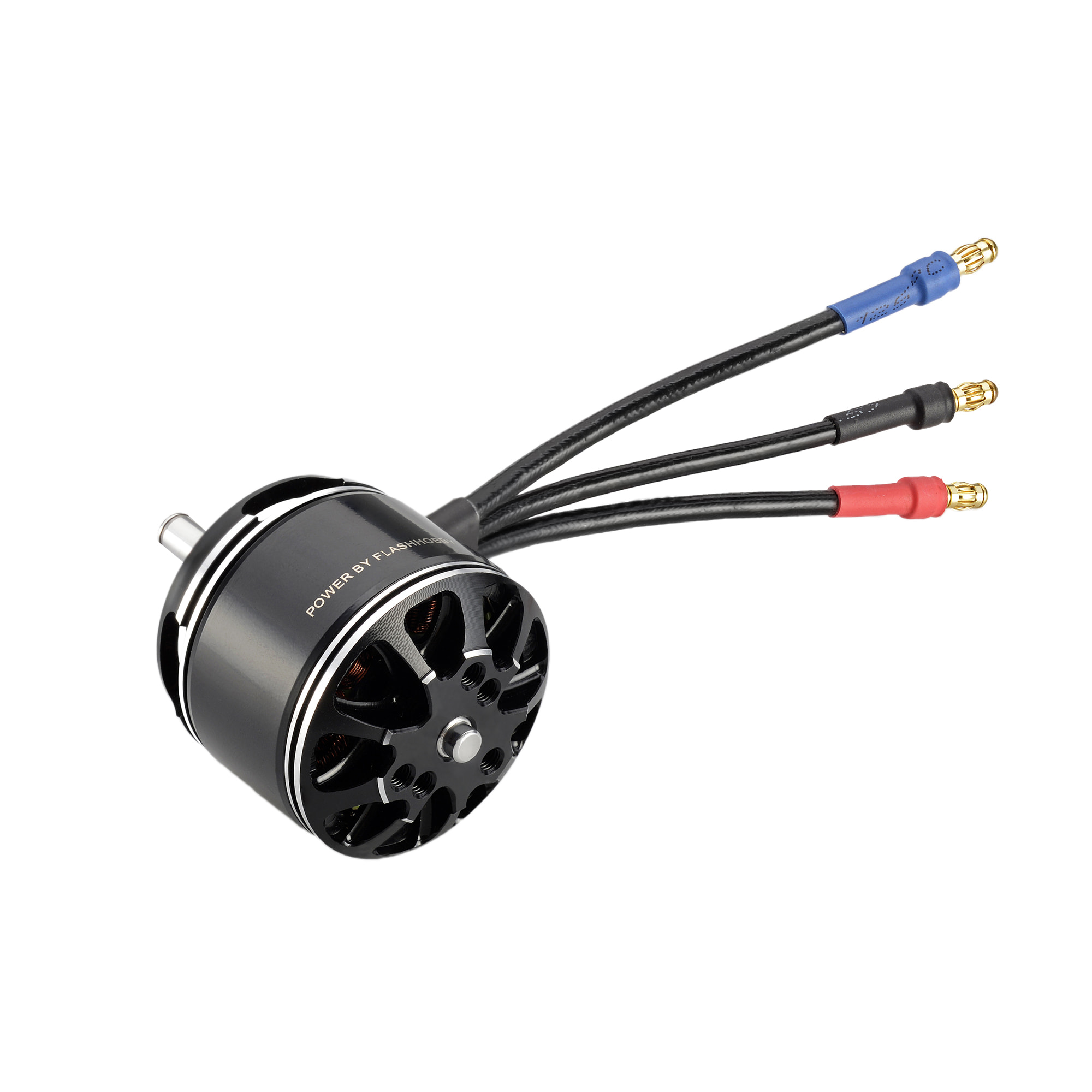

D3536EVO Fixarum Wing Motor

D3536EVO Fixarum Wing Motor
●Weight: 105.8g (fila Complectens)
●Motor Size: 35.3 x36mm
●Shaft Size: 5.0*53.5mm
●Stator Diameter: 28mm
Stator Altitudo: 14mm
●Motor Mount: 19*25mm(M3*4)
Configurationis: 12N14P
KV Value: 910KV, 1000KV, 1250KV，1450KV vel usitatum KV

Model:D3536EVO

Mitte Inquisitionem

D3536EVO Fixarum Wing MotorApplicationem

D3536EVO（2814） RC Brushless Motor for UAV Aircraft Multicopters RC Plane Helicopter

D3536 EVO RC Brushless Motor Features:
48H Level Magnet
Subtilitas Libratum Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminium Bell .
Princeps RPM Imported (NSK/NMB) supportantes

Maximum Temperature Resistant Copper Wire Winding

D3536 EVO RC Brushless Motor Specification

Pondus: 105.8g (fila Complectens)
Motor Size: 35.3 x36mm
Shaft Size: 5.0*53.5mm
Stator Diameter: 28mm
Stator Height: 14mm
Motor Mount: 19*25mm(M3*4)
Configurationis: 12N14P

KV Value for Electio:

KV Value: 910KV, 1000KV, 1250KV，1450KV KV

KV: 910KV
Max Watts: 347.7W
Max Current: 21.45A
Nulla Load current: 1.2A/10V
Resistentia: 66.7mΩ
Pugna: 3-4S Lipo
Suggessit Prop

KV: 1000KV
Max Watts: 300.1W
Max Current: 24.44A
No Load current: 1.58A/10V
Resistentia: 46.5mΩ
Pugna: 3-4S Lipo
Suggessit Prop: 10 inch huius

KV: 1250KV
Max Watts: 919.3W
Max Current: 57.31A
No Load current: 2.15A/10V
Resistentia: 30.2mΩ
Pugna: 3-4S Lipo
Suggessit Prop: 10 inch huius

KV: 1450KV
Max Watts: 609.2W
Max Current: 51.45A
No Load current: 2.77A/10V
Resistentia: 26.8mΩ
Pugna: 3-4S Lipo
Suggessit Prop

D3536 EVO Motor Tractus:

APPLICANDIS:

CONIUNCTIO:

D3536 EVO RC Brushless Motor Specification

D3536 EVO Motor Drawing:

D3536 EVO Motor Test Data:

MOTOR TECHNICAL DATA:
ltem NO.	Volts(V)	Prop	Throttle(%)	CURRENT (A)	Power(W)	Thrust (g)	PRM	Efficiency (g/W)	Operating temperature(℃)
D3536-910KV(EVO)	12.78	7x5	40%	3.33	42.6	239	6309	5.6	44.1℃
	12.76		50%	4.23	54.0	292	6938	5.4
	12.75		60%	5.07	64.6	336	7439	5.2
	12.73		70%	5.78	73.6	356	7875	4.8
	12.71		80%	6.77	86.0	413	8213	4.8
	12.68		90%	8.66	109.8	504	9064	4.6
	12.66		100%	9.85	124.7	543	9487	4.4
	12.81	APC8x6	40%	3.42	43.8	249	6432	5.7	45.2℃
	12.75		50%	4.45	56.7	313	7050	5.5
	12.61		60%	5.34	67.3	369	7541	5.5
	12.45		70%	6.17	76.8	405	7964	5.3
	12.42		80%	7.15	88.8	472	8375	5.3
	12.38		90%	9.54	118.1	580	9252	4.9
	12.32		100%	11.06	136.3	650	9613	4.8
	16.81	7x5	40%	4.78	80.4	369	7877	4.6	47.3℃
	16.74		50%	6.22	104.1	448	8654	4.3
	16.70		60%	7.57	126.4	523	9311	4.1
	16.56		70%	8.90	147.4	597	9825	4.1
	16.48		80%	10.81	178.1	689	10509	3.9
	16.44		90%	14.34	235.7	845	11604	3.6
	16.41		100%	16.40	269.1	917	12056	3.4
	16.72	APC8x6	40%	4.77	79.8	388	7795	4.9	48.3℃
	16.70		50%	6.40	106.9	489	8586	4.6
	16.66		60%	7.70	128.3	558	9210	4.3
	16.48		70%	9.13	150.5	641	9707	4.3
	16.41		80%	11.36	186.4	732	10408	3.9
	16.34		90%	15.29	249.8	883	11463	3.5
	16.21		100%	17.54	284.3	992	11871	3.5
	16.59	APC9x6	40%	5.35	88.8	520	6892	5.9	49.8℃
	16.55		50%	7.21	119.3	638	7618	5.3
	16.51		60%	8.94	147.6	744	8256	5.0
	16.47		70%	10.90	179.5	867	8811	4.8
	16.39		80%	14.21	232.9	1051	9700	4.5
	16.26		90%	19.10	310.6	1293	10615	4.2
	16.21		100%	21.45	347.7	1393	10997	4.0
D3536-1000KV(EVO)	12.66	APC8x6	40%	4.61	58.4	323	7008	5.5	55.2℃
	12.60		50%	5.98	75.3	392	7739	5.2
	12.53		60%	7.28	91.2	452	8294	5.0
	12.50		70%	8.47	105.9	506	8745	4.8
	12.44		80%	10.18	126.6	582	9266	4.6
	12.40		90%	13.37	165.8	696	10230	4.2
	12.35		100%	15.44	190.7	768	10640	4.0
	12.87	APC10x5	40%	5.58	71.8	485	5855	6.8	56.4℃
	12.75		50%	7.65	97.5	596	6546	6.1
	12.70		60%	9.70	123.2	720	7099	5.8
	12.64		70%	12.11	153.1	837	7672	5.5
	12.56		80%	16.22	203.7	1010	8488	5.0
	12.31		90%	21.87	269.2	1254	9287	4.7
	12.28		100%	24.44	300.1	1332	9646	4.4
	16.44	7x5	40%	6.39	105.1	417	8597	4.0	52.1℃
	16.32		50%	8.39	136.9	520	9476	3.8
	16.30		60%	10.31	168.1	604	10183	3.6
	15.89		70%	12.23	194.3	670	10806	3.4
	15.67		80%	15.19	238.0	837	11638	3.5
	15.55		90%	20.07	312.1	1005	12837	3.2
	15.46		100%	22.52	348.2	1100	13350	3.2
D3536-1250KV(EVO)	12.87	APC9x6	40%	8.29	106.7	580	7244	5.4	60.5℃
	12.82		50%	11.16	143.1	718	8043	5.0
	12.77		60%	13.92	177.8	831	8702	4.7
	12.72		70%	16.97	215.9	973	9301	4.5
	12.62		80%	22.19	280.0	1164	10224	4.2
	12.58		90%	29.53	371.5	1411	11156	3.8
	12.50		100%	33.48	418.5	1547	11552	3.7
	12.82	APC 10x5	40%	8.75	112.2	637	6691	5.7	63.1℃
	12.77		50%	12.04	153.8	812	7491	5.3
	12.70		60%	15.58	197.9	958	8096	4.8
	12.62		70%	19.61	247.5	1123	8792	4.5
	12.50		80%	26.48	331.0	1386	9621	4.2
	12.44		90%	34.87	433.8	1639	10450	3.8
	12.34		100%	39.41	486.3	1739	10812	3.6
	16.79	APC 10x5	40%	12.45	209.0	937	6691	4.5	69.6℃
	16.69		50%	17.56	293.1	1197	7491	4.1
	16.58		60%	23.14	383.7	1421	8096	3.7
	16.40		70%	30.35	497.7	1722	8792	3.5
	16.28		80%	40.64	661.6	2061	9621	3.1
	16.14		90%	52.79	852.0	2370	10450	2.8
	16.04		100%	57.31	919.3	2507	10812	2.7
D3536-1450KV(EVO)	12.89	APC9x6	40%	11.14	143.6	682	7838	4.7	66.8℃
	12.82		50%	15.20	194.9	843	8711	4.3
	12.76		60%	19.14	244.2	997	9446	4.1
	12.68		70%	23.39	296.6	1150	10112	3.9
	12.53		80%	31.06	389.2	1402	11054	3.6
	12.34		90%	40.18	495.8	1669	11932	3.4
	12.23		100%	45.45	555.9	1788	12301	3.2
	12.68	APC11x7	40%	11.83	150.0	747	7177	5.0	65.6℃
	12.54		50%	16.31	204.5	940	7971	4.6
	12.37		60%	20.86	258.0	1089	8624	4.2
	12.28		70%	26.79	329.0	1314	9296	4.0
	12.14		80%	35.38	429.5	1510	10184	3.5
	11.86		90%	45.13	535.2	1787	10876	3.3
	11.84		100%	51.45	609.2	1884	11260	3.1
Notes: The test condition oftemperature is motor surface temperature in 100% throttle while the motor run 15 s.environment temperature 26℃
