D4250EVO Fixarum Wing Motor

You can rest assured to buy customized D4250EVO Fixed Wing Motor from Flash Hobby. Expectamus cooperantem tibi, si plura scire vis, modo consulere potes, respondebimus tibi in tempore!
●Weight: 209g (fila Complectens)
●Motor Size: 42.8 x50mm
●Shaft Size: 5.0*68.0mm
Stator Diameter: 35mm
Stator Height: 20mm
●Motor Mount: 25*25mm(M3*4)
Configurationis: 12N14P
●KV Value: 600KV, 800KV vel consuetum KV

Model:D4250EVO

Mitte Inquisitionem

Low Price Quality D4250EVO Fixarum Wing Motor In Stock. Flash Hobby est D4250EVO Fixarum Wing Motor fabrica et elit in Sinis.

D4250 EVO Brushless dc Motor Application

D4250EVO（3520） Praecursor Brushless DC Motor for Helicopter Cunas Coffee Machina Lac Tea Machina electrica EXERCITATIO apparatus falcationis brachii robotici

D4250 EVO Brushless DC Features motor:
48H Level Magnet
Subtilitas Libratum Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminium Bell .
Princeps RPM Imported (NSK/NMB) supportantes
Maximum Temperature Resistant Copper Wire Winding

D4250 EVO Brushless DC Motor Specification

Pondus: 209g (fila Complectens)
Motor Size: 42.8 x50mm
Shaft Size: 5.0*68.0mm
Stator Diameter: 35mm
Stator Height: 20mm
Motor Mount: 25*25mm(M3*4)
Configurationis: 12N14P

KV Value for Electio:

KV Value: 600KV, 800KV vel consuetum KV

KV: 600KV
Max Watts: 1252W
Max Current: 57.83A
No Load current: 1.39A/10V
Resistentia: 32.0mΩ
Pugna: 5-6S Lipo
Suggessit Prop

KV: 800KV
Max Watts: 1196.0W
Max Current: 60.74A
No Load current: 2.37A/10V
Resistentia: 20.3mΩ
Pugna: 5-6S Lipo
Suggessit Prop

D4250 EVO Motor Tractus:

CONIUNCTIO:

D4250 EVO Brushless DC Motor Specification

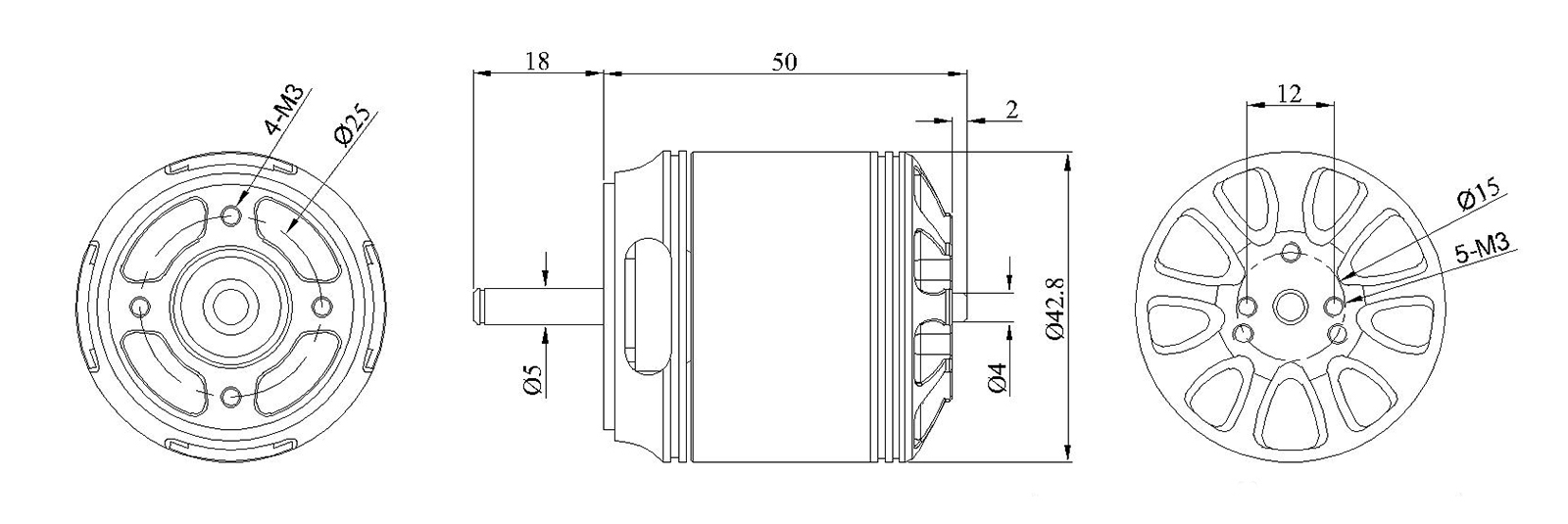

D4250 EVO Motor Drawing:

D4250 EVO Motor Test Data:

MOTOR TECHNICAL DATA:
ltem NO.	Volts(V)	Prop	Throttle(%)	CURRENT (A)	Power(W)	Thrust (g)	PRM	Efficiency (g/W)	Operating temperature(℃)
D4250-600KV(EVO)	18.94	APC 12x6	40%	5.23	99.1	698	5546	7.0	48.0℃
	18.89		50%	7.10	134.1	755	6216	5.6
	18.83		60%	9.08	171.0	998	6766	5.8
	18.74		70%	11.32	212.1	1174	7281	5.5
	18.61		80%	15.02	279.5	1426	7966	5.1
	18.46		90%	20.94	386.6	1817	8713	4.7
	18.32		100%	26.21	480.2	2068	9373	4.3
	19.03	APC 14x7	40%	5.95	113.2	844	4735	7.5	56.2℃
	18.97		50%	8.48	160.9	1091	5365	6.8
	18.88		60%	12.02	226.9	1355	6001	6.0
	18.74		70%	17.90	335.4	1871	6763	5.6
	18.51		80%	24.27	449.2	2287	7417	5.1
	18.30		90%	32.63	597.1	2736	8059	4.6
	18.15		100%	41.61	755.2	3174	8573	4.2
	22.99	APC 12x6	40%	6.77	155.6	909	6436	5.8	52.7℃
	22.93		50%	9.31	213.5	1158	7186	5.4
	22.85		60%	12.16	277.9	1395	7790	5.0
	22.62		70%	15.96	361.0	1677	8461	4.6
	22.48		80%	21.78	489.6	2071	9284	4.2
	22.40		90%	29.94	670.7	2533	10172	3.8
	22.20		100%	38.53	855.4	2920	10806	3.4
	22.81	APC 14x7	40%	7.66	174.7	1139	5426	6.5	64.3℃
	22.73		50%	11.14	253.2	1388	6153	5.5
	22.58		60%	16.78	378.9	1960	6966	5.2
	22.39		70%	24.68	552.6	2548	7775	4.6
	22.22		80%	33.69	748.6	3099	8495	4.1
	21.92		90%	45.47	996.7	3668	9139	3.7
	21.65		100%	57.83	1252.0	4161	9623	3.3
D4250-800KV(EVO)	18.91	APC 12x6	40%	11.22	212.2	1141	6939	5.4	57.6℃
	18.82		50%	15.76	296.6	1436	7757	4.8
	18.72		60%	21.13	395.6	1762	8456	4.5
	18.57		70%	28.39	527.2	2123	9221	4.0
	18.28		80%	38.45	702.9	2567	10028	3.7
	17.87		90%	48.50	866.7	2904	10769	3.4
	17.34		100%	56.31	976.4	3215	11834	3.3
	22.68	APC 12x6	40%	11.55	262.0	1368	6036	5.2	59.1℃
	22.29		50%	18.25	406.8	1955	6930	4.8
	22.05		60%	29.28	645.6	2661	7918	4.1
	21.92		70%	45.01	986.6	3442	8830	3.5
	20.90		80%	56.96	880.0	3811	9314	4.3
	19.90		90%	58.80	940.6	3664	9099	3.9
	19.69		100%	60.74	1196.0	3716	9266	3.1
