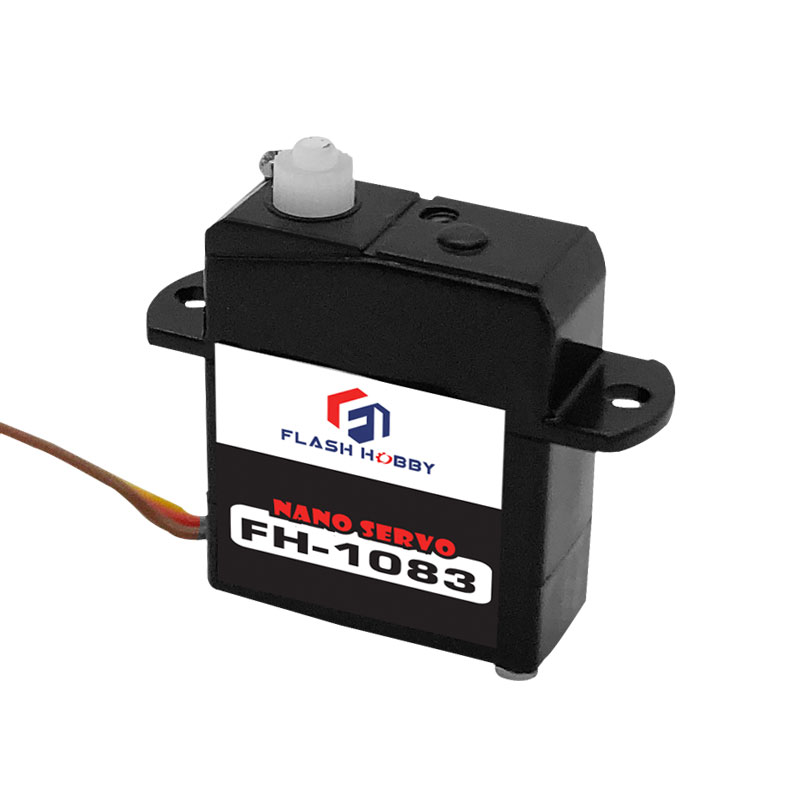

FH-1083 Micro Servo

FH-1083 Micro Servo Specification:
-Control system: 1520us Pulsus latitudo modulationis imperium
-Operatio voltage: 3.7V-4.2V
-Operatio temperatus range: -10℃~+50℃
-Circle: (VI) temporibus
-Operation travel: 90°±10°
-Limit angulus: 180°±10°
-Direction: horologium sapiens Re / pulsum iter CM → MMC usec
-Connector: Mini JR
ဒီဂျစ်တယ်ထိန်းချုပ်မှု
-Potentiometer type: Potentiometer
-Amplifier type: Digital imperium
-Dimensio: 13.5*6.2*16mm
-Weight: 1.7 ± 0.1g (sine servo cornu)
-Stans torque: 65g-cm/3.7V, 75g-cm/4.2V
-Speed: 0.07±0.01 sec/60°（at 3.7v), 0.05±0.01 sec/60°（at 4.2v)
Cohors -Dead width: 5usec
-Gear materia: Plastic anni
Casus materiales: Nylon plus fibra
-Connector longitudinem filum: 110mm
-Connector: Mini JR

Imperium System(imperium ratio)	1520us Pulsus Latitudo Modulation Imperium
Operatio intentione Range(Operans voltage)	3.7V ~ 4.2V
Operatio Temperature Range(Operiens temperatus)	-10C°~ +50C°
Circulus(vitae)	(VI) temporibus
Operatio Travel(Operans angulus)	90°± 10°
Angulus modus (extremum angulus)	180°± 10°
Directio(Signum pulsus latitudine range)	Sapiens re-horologium / Pulsus Iter 900 → 2100 μsec
Genus diver (motricium repulsi)	IC Drive
Motor Type(Motricium genus)	Coreless
Potentiometer Type (Potentiometer processus modus)	Potentiometer
Amplifier Type(Signum processus modum)	Digital Control
Dimensiones(specificatio)	13.5*6.2*16.0mm
Pondus:(pondus)	1.7 ± 0.1gg (sine servo cornu)
Test Voltage:(Test voltage)	Ad 3.7V	Ad 4.2V
Stans Torque(Maximum torque)	65g-cm	75g-cm
Potensiometr emal üsulu)nullus onus celeritas)	0.07±0.01 sec/60°	0.05±0.01 sec/60°
Otiosa Current (Nullus onus current)	90±20mA	100±20mA
Currens Current (Onus current)	240±30mA	Informácie o drôte (hnedý)
Mortuus latitudo cohortis(Zona mortuus)	Bahan Gear	Bahan Gear
Ball Ferens(ferens)	no
Apparatus Material(Materia calces)	Plastic gears
Materia(Servo habitationi materia)	Nylon plus fibra
Longitudo iungo filum(Longitudo linea)	110mm  Saiki ora beban
Connector Wire Gauge(Exemplum filum)	OD0.6/PVC
Filum Info (Brown)	Negative
Filum Info (Red)	Positivum
Filum Info (Yellow)	S Single
