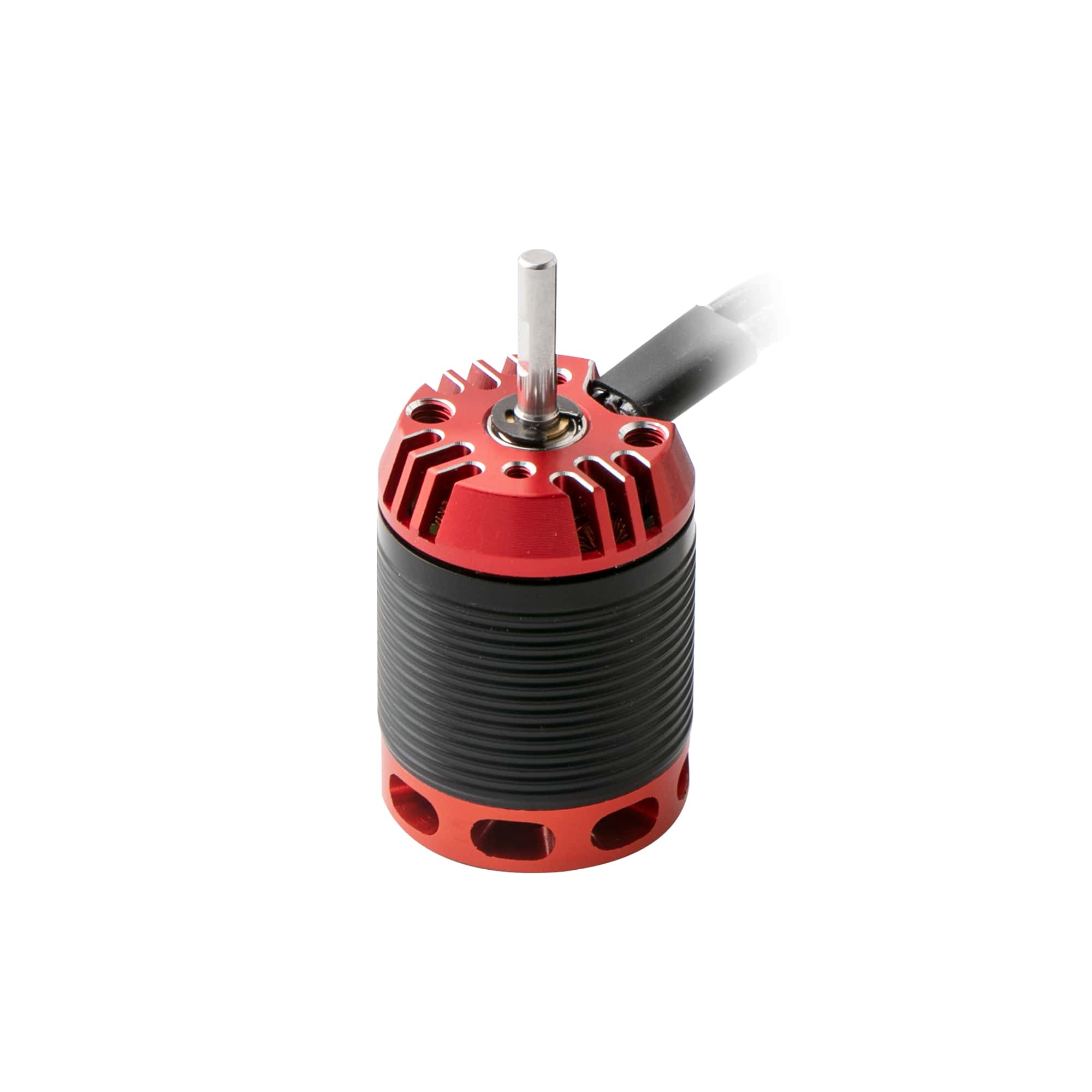

H450 Helicopter Motor
H450 Helicopter Motor
Weight：94g (including rudentes)
●Motor Size:29.4*38.5mm
Stator Diameter:22mm
Stator Height:22mm
Shaft Diameter: 3.5mm
Motor Mount: 16x19mm(M3*4)
Configurationis: 9N/6P
Weight：94g (including rudentes)
●Motor Size:29.4*38.5mm
Stator Diameter:22mm
Stator Height:22mm
Shaft Diameter: 3.5mm
Motor Mount: 16x19mm(M3*4)
Configurationis: 9N/6P
Model:H450 Helicopter Motor
Mitte Inquisitionem
H450 Helicopter Motor
KV: 1850KV
Max Current: 30A
Max Power: 1080W
Otiosum Current: 2.5A
Resistentia: 0.0382Ω
Shaft: 3.5mm
Pondus: 94g
Suggessit ESC: 45A
Lipo: 2-6S
Connector: 3.5mm iungo masculus
KV: 3800KV
Max Current: 40A
Max Power: 950W
Otiosum Current: 3.8A
Resistentia: 0.0182Ω
Shaft: 3.5mm
Pondus: 94g
Suggessit ESC: 65A
Lipo: 2-4S
Connector: 3.5mm iungo masculus
Motor trahens:
| 电机 KV | Motor KV | 1850RPM/V |
| 空载电流 | Vana Current (Io/10V) | 2.5A |
| 锂电节数 | Lipo Cell | 2-6S |
| 电机重量 | Pondus | 94g |
| 最大持续电流 | Max Continua Current | 30A |
| 最大持续功率 | Max continuitate | 720W |
| 最大峰值电流 | Max Pecco Current | 45A(2seconds) |
| 最大峰值功率 | Max Peak Power | 1080W (2seconds) |
| 槽极数 | Configura-ration | 9N/6P |
| 电机内阻 | Motor Resistentia (RM) | 0.0382 Ω |
| 定子直径 | Stator Diameter | 22mm |
| 定子厚度 | Statoris Crassitudo | 22mm |
| 电机直径 | Motor Diameter | 29.4mm |
| 出轴直径 | Shaft Diameter | 3.5MM |
| 电机长度 | Motor Corpus Longitudo | 38.5mm |
| 整体轴长度 | Longitudo altiore Shaft | 55.5mm |
| 安装孔间距 | Fulmen foramina spatio | 16/19mm |
| 安装孔规格 | Fulmen filum | M2.5/M4 |
| 插头 | Connection | 3.5MM |
| 电机进角 | Motor Timing | 5deg |
| 驱动频率 | Coegi Frequency | 8KHz |
| 电机 KV | Motor KV | 3800RPM/V |
| 空载电流 | Vana Current (Io/10V) | 3.8A |
| 锂电节数 | Lipo Cell | 2-4S |
| 电机重量 | Pondus | 94g |
| 最大持续电流 | Max Continua Current | 40A |
| 最大持续功率 | Max continuitate | 650W |
| 最大峰值电流 | Max Pecco Current | 65A(2seconds) |
| 最大峰值功率 | Max Peak Power | 950W (2seconds) |
| 槽极数 | Configura-ration | 9N/6P |
| 电机内阻 | Motor Resistentia (RM) | 0.0182 Ω |
| 定子直径 | Stator Diameter | 22mm |
| 定子厚度 | Statoris Crassitudo | 22mm |
| 电机直径 | Motor Diameter | 29.4mm |
| 出轴直径 | Shaft Diameter | 3.5MM |
| 电机长度 | Motor Corpus Longitudo | 38.5mm |
| 整体轴长度 | Longitudo altiore Shaft | 55.5mm |
| 安装孔间距 | Fulmen foramina spatio | 16/19mm |
| 安装孔规格 | Fulmen filum | M2.5/M4 |
| 插头 | Connection | 3.5MM |
| 电机进角 | Motor Timing | 5deg |
| 驱动频率 | Coegi Frequency | 8KHz |
