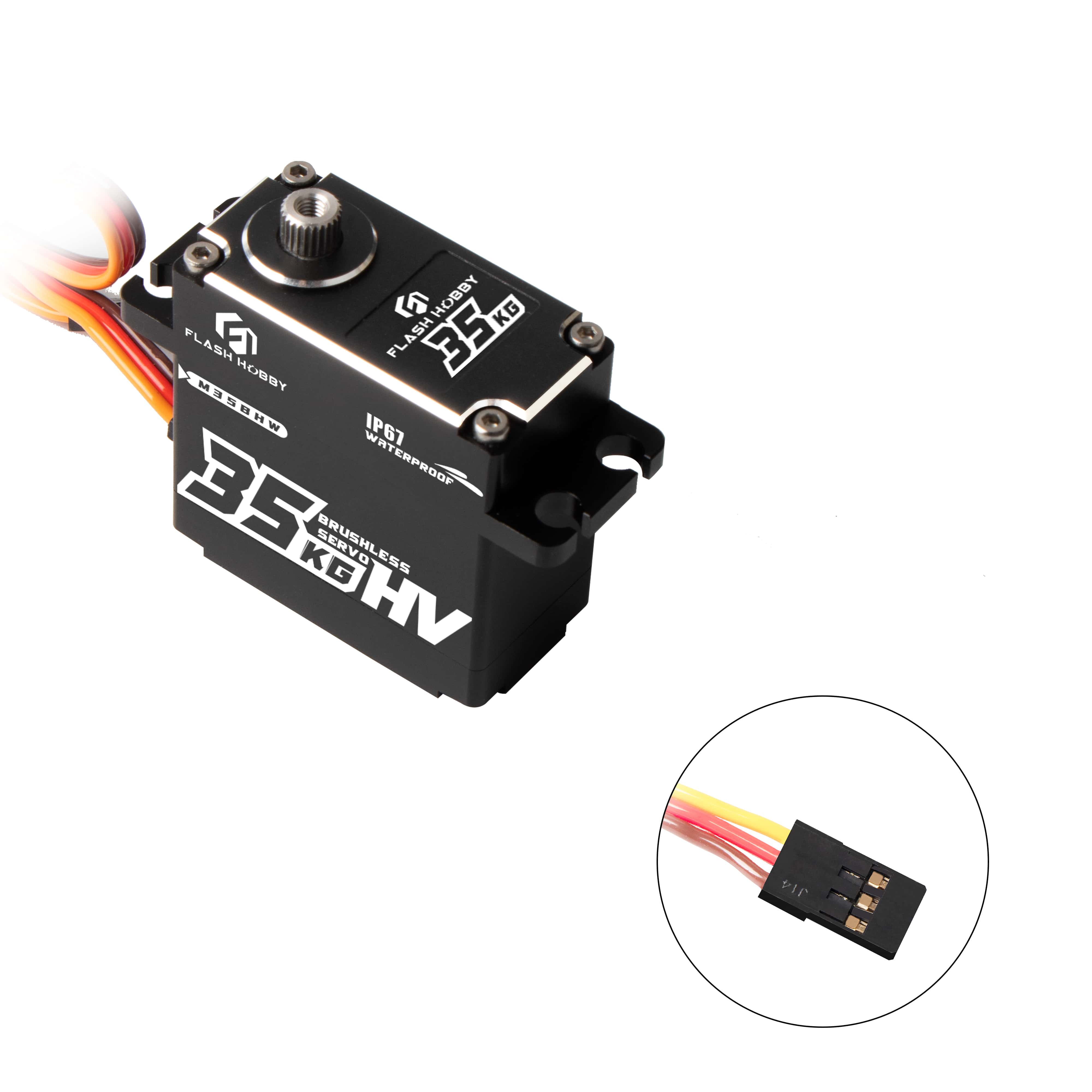

M35BHW Brushless Servo
Flash Hobby est fabrica Sinarum & supplementum qui maxime M35BHW Brushless Servo cum multis annis experientiae producit. Spero te aedificare negotium necessitudinem cum.
Suggessit Price: US $ 39.99
●Size: 40x20x40.50mm
Weight: 75g (sine servo cornu)
Gear: Metal
Torque/Speed: 30kg-cm/0.09sec/60°6V
35kg-cm/0.07sec/60°8.4V
Motor Type: Brushless Motor
Signum Type: Digital Control
●Case Material: CNC AL6082 Aluminium Case
●Connector Wire Longitudo: 300MM JR Plug
Suggessit Price: US $ 39.99
●Size: 40x20x40.50mm
Weight: 75g (sine servo cornu)
Gear: Metal
Torque/Speed: 30kg-cm/0.09sec/60°6V
35kg-cm/0.07sec/60°8.4V
Motor Type: Brushless Motor
Signum Type: Digital Control
●Case Material: CNC AL6082 Aluminium Case
●Connector Wire Longitudo: 300MM JR Plug
Mitte Inquisitionem
Lupum Newest Hot M35BHW Brushless Servo in Sinis factis. Flash Hobby est M35BHW Brushless Servo fabrica et elit in Sinis.
- Princeps perficientur vexillum servo
- Princeps calces accurate ferro
- Qualis Brushless motricium
- Al6082 aluminium carinae et compages plenae CNC
- Dual pila portantes
- Super vita longa
- IMPERVIUS
| Imperium System(imperium ratio) | PWM Control (1500usec in media parte) | |
| Operatio intentione Range(Operans voltage) | 6.0V ~8.4V | |
| Operatio Temperature Range(Operiens temperatus) | -20C°~ +60C° | |
| Circulus(vitae) | -1 decies centena tempora temporibus sine onere | |
| Operatio Travel(Operans angulus) | 60°±1 | |
| Angulus modus (extremum angulus) | 180°± 1 | |
| Directio(Signum pulsus latitudine range) | Re horologium sapiens / Pulsus Iter 500 → 2500 μsec | |
| Genus diver (motricium repulsi) | Mos Drive | |
| Motor Type(Motricium genus) | Brushless motricium | |
| Potentiometer Type (Potentiometer processus modus) | Direct Drive | |
| Amplifier Type(Signum processus modum) | Digital Control | |
| Dimensiones(specificatio) | 40x20x40.50mm | |
| Pondus:(pondus) | 75g (sine servo cornu) | |
| Test Voltage:(Test voltage) | Ad 6.00V | Ad 8.4V |
| Stans Torque(Maximum torque) | 30kg-cm | 35kg-cm |
| Celeritas(Nullus onus celeritas) | 0.09sec/60° | 0.07sec/60° |
| Otiosa Current (Nullus onus current) | 300mA | 350mA |
| Currens Current (Onus current) | 4500mA | 680mA |
| Mortuus latitudo cohortis(Zona mortuus) | 1usec | 1usec |
| Ball Ferens(portantes) | 2BB | |
| Apparatus Material(Materia calces) | Metal Apparatus | |
| Materia(Servo habitationi materia) | Aluminium Case | |
| Longitudo iungo filum(Longitudo linea) | 300MMJR Plug | |
| Connector Wire Gauge(Exemplum filum) | 22AWG | |
| Filum Info (Brown) | Negative | |
| Filum Info (Red) | Positivum | |
| Filum Info (Yellow) | S Single | |
