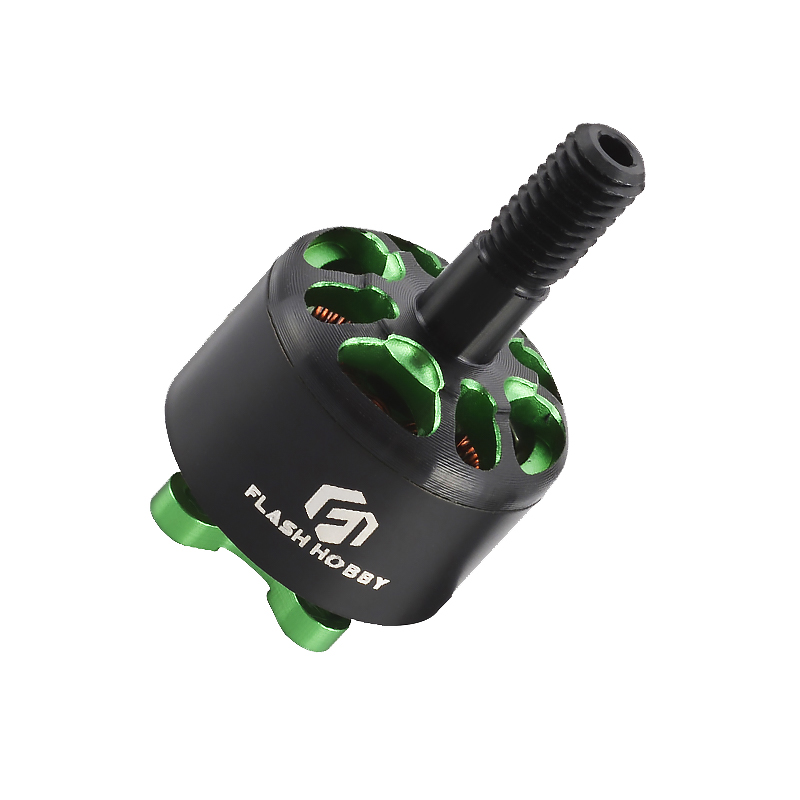

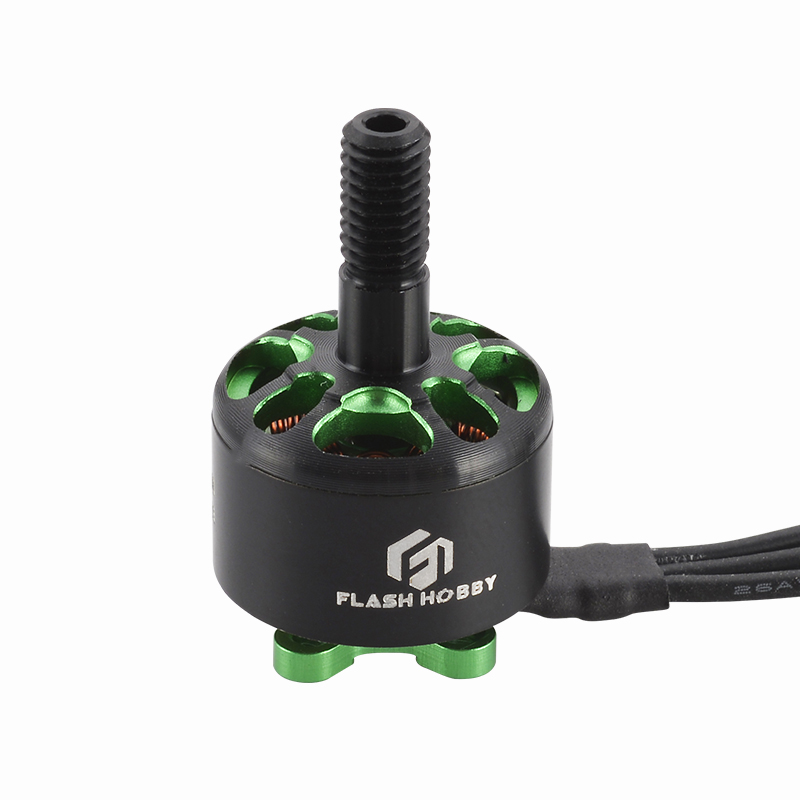

A1408 M5 BLDC Motor

A1408 M5 Brushless DC Motor.

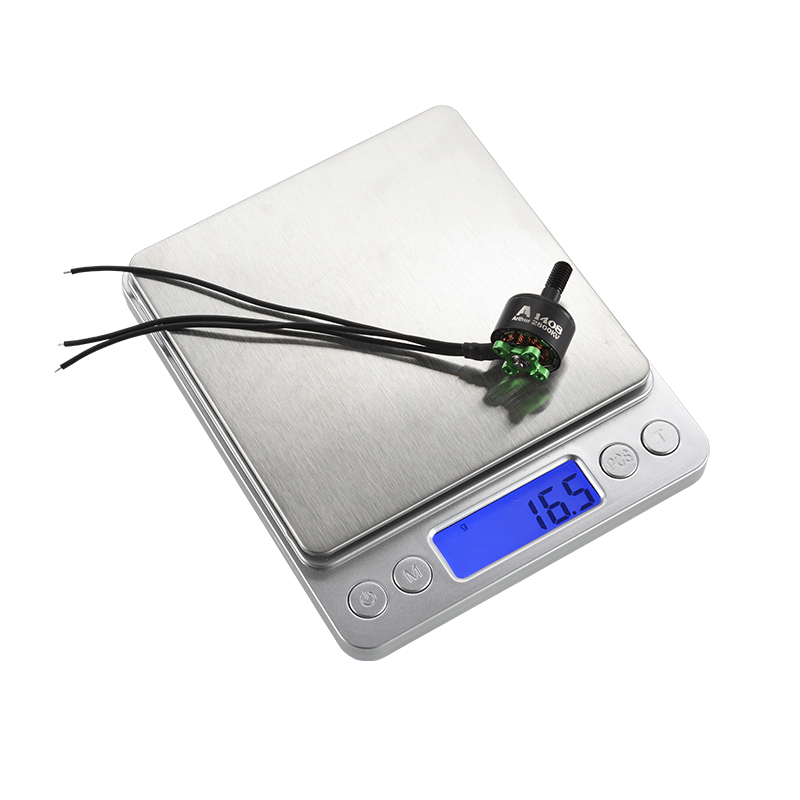

●Weight: 15.9g (including ancoras)
Motor Size: 18.6 x 17.2mm
Shaft Diameter: 2.0mm
Stator Diameter: 14mm
Stator Altitudo: 8mm
Prop montem Shaft Dia.: M5
●Motor Mount: 12*12mm(M2*4)
●Configuratio: 9N12P
●Motor cable: 26#AWG 115mm
NMB supportantes
7075-T6 Aluminium bell
Multicolor color design
Rated Power:53W
KV Value: 2800KV, 3650KV vel custum KV
Cum annos experientiae in productione A1408 M5 Brushless DC Motor, Flash Hobby amplam amplitudinem praebere potest A1408 M5 Brushless DC Motor.

Model:A1408

Mitte Inquisitionem

Flash Hobby est A1408 M5 Brushless DC fabrica et elit in Sinis.

A1408(M5)-2800KV Motor Specification

Max viverra：660g

Volts：20V(5S)

Suggessit ESC: 10A~20A

Suggessit Prop

A1408(M5)-3650KV Motor Specification

Max viverra：650g

Volts：16V(4S)

Suggessit ESC: 10A~20A

Maximum Power：365W

Suggessit Prop

Pluma:

1.NMB supportantes

2.7075-T6 Aluminium bell

3.Multicolor color design

4.0.15mm chartae siliconis ferri ex Kawasaki, Japan

MOTOR Tractus:

Product Detail:

Coniuncta instructiones

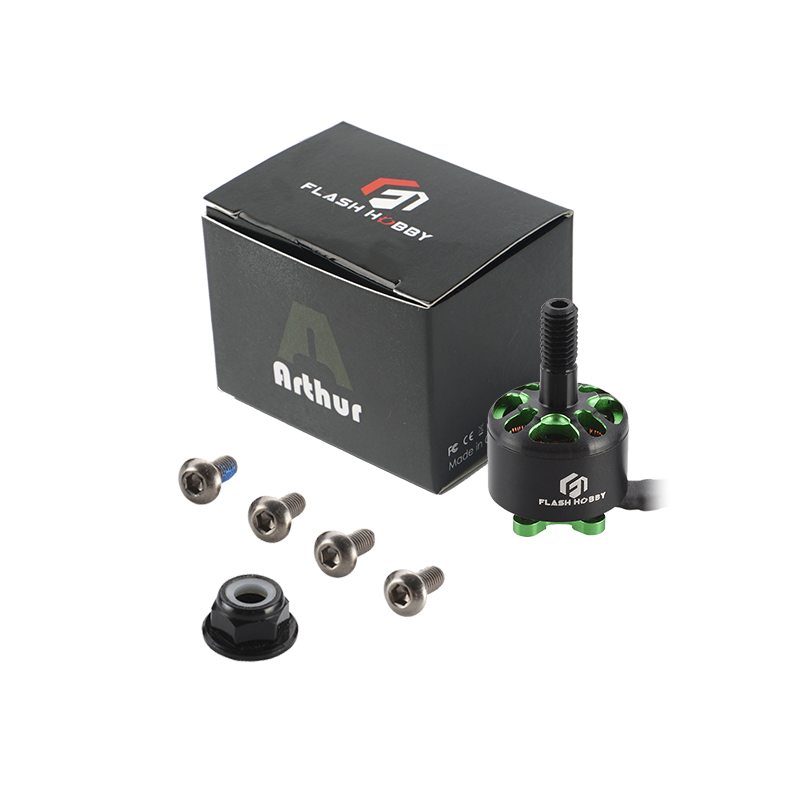

Referta:

Flashhobby motor *1, M2X5mm*4, M2X7mm*8

FAQ

1、Quid est MOQ of?the regular item?

A: Non est MOQ limitata pro stirpe item. Sed si opus est mutare colorem vel consilium, MOQ sicut per diversam petitionem statuemus.

2、Si ordo quantitas magna est, si pretium a mangone applicare potest?

A: Ita, per diversam petitionem nostram optimam offerimus.

3、Si mutare aliquid opus est cum confirmatus ordo, pis quomodo facere possumus?

A: Si petis, pls contactum nobiscum intra 2 dies cum ordo confirmatus est, aliter, cassari non potest, nec consilium motoris mutare potest.

4、Quousque partus tempus?

A: Id est de VII diebus cum ordo item pro regulari confirmatur.

5、Quid est plumbum ordinis OEM/OMD?

A: Communiter dies est 15-30.

6、Quid est MOQ of?OEM/OMD ordine?

A: Single color Motor MOQ-200PCS

Multicolores Motor MOQ-1000PCS

MOTOR Tractus:

Datas Test:

ltem NO.	Volts(V)	Prop	Iugulus (%)	Textus (A)	Virtus (W)	Mitte (g)	Efficientia (g/W)	Temperatus operating (℃)
A1408 2800kv	24	GF3028 3R	L%	3.51	84.2	226	2.68	58.1℃
			60%	5.14	123.4	315	2.55
			70%	7.97	191.3	412	2.15
			80%	11.01	264.2	522	1.98
			90%	13.89	333.4	600	1.80
			100%	14.19	333.2	605	1.82
	24	GF3056 3R	L%	3.51	82.4	223	2.71	56.2℃
			60%	5.07	119.0	316	2.65
			70%	7.57	177.7	422	2.37
			80%	10.88	255.5	534	2.09
			90%	13.76	323.1	619	1.92
			100%	13.99	333	623	1.87
	16	GF4045 3R	L%	3.37	53.9	198	3.67	55.1℃
			60%	5.01	80.1	280	3.50
			70%	7.84	125.3	372	2.97
			80%	11.01	175.4	459	2.62
			90%	13.45	212.4	518	2.44
			100%	13.78	217.4	528	2.43
	20	GF4045 3R	L%	4.59	91.6	278	3.03	81.3℃
			60%	7.03	139.3	387	2.78
			70%	10.41	205.7	493	2.40
			80%	14.12	278.2	604	2.17
			90%	16.18	318.7	638	2.00
			100%	17.25	339.0	660	1.95
A1408 3650kv	16	GF3028 3R	L%	3.51	57.2	162	2.83	44.3℃
			60%	5.07	82.6	230	2.78
			70%	7.43	121.0	307	2.54
			80%	10.61	172.8	393	2.27
			90%	13.51	220.1	461	2.09
			100%	13.56	220.9	461	2.09
		GF3056 3R	L%	3.85	62.7	170	2.71	47.1℃
			60%	5.41	88.1	241	2.73
			70%	7.97	129.8	322	2.48
			80%	11.42	186.0	414	2.23
			90%	14.39	234.4	483	2.06
			100%	14.59	237.7	486	2.04
		GF4045 3R	L%	5.81	94.6	285	3.01	74℃
			60%	9.46	154.1	394	2.56
			70%	13.99	227.9	497	2.18
			80%	18.4	299.7	593	1.98
			90%	21.31	347.1	625	1.80
			100%	22.39	364.7	650	1.78
Notae: Conditio probatio temperaturae est superficies motoria in iugulo C% temperatus dum motor currit 15 s.environment temperatus 26℃
